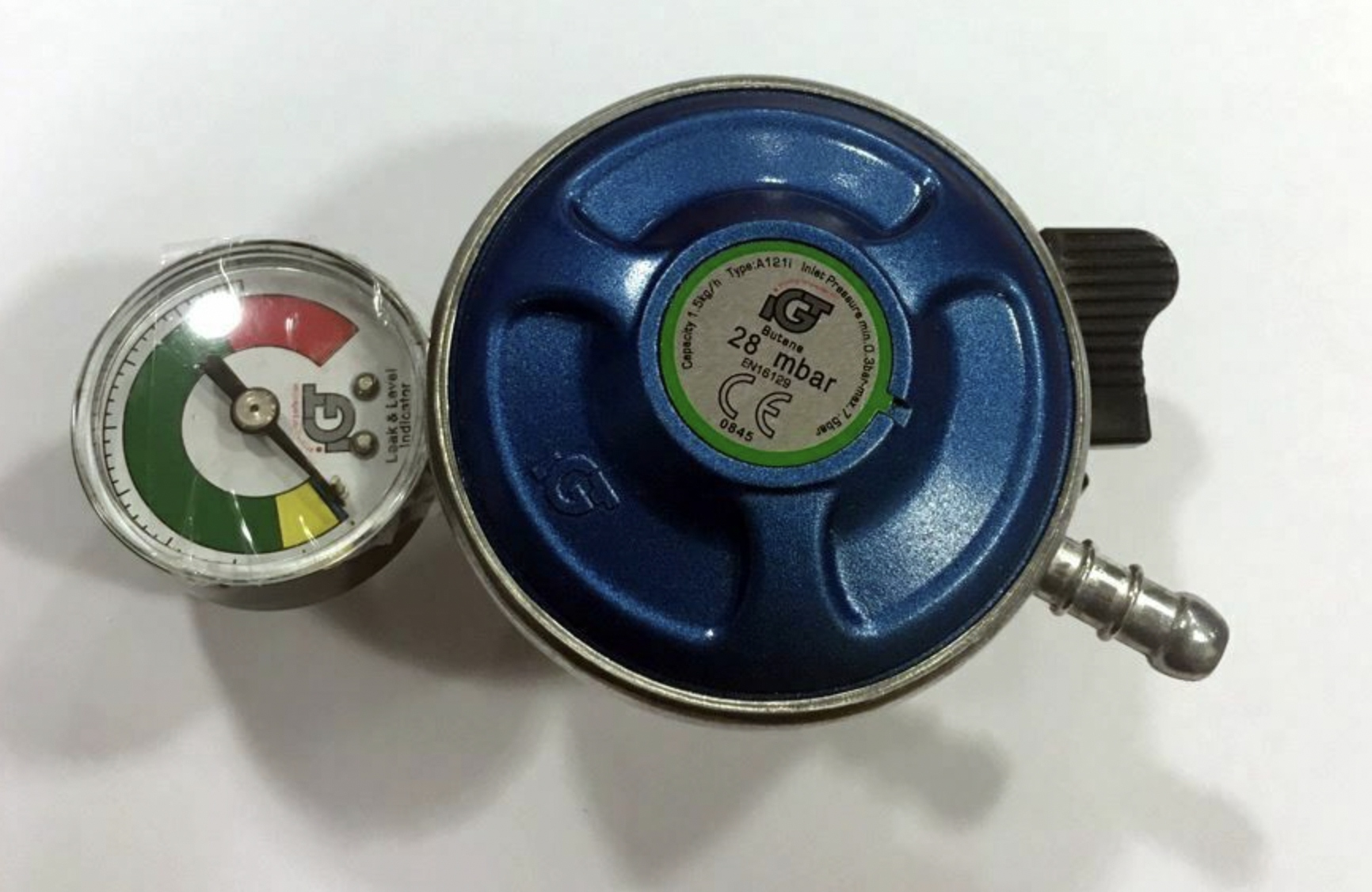

Butane Push Fit Gas Regulator with Dial Gauge
This is a great product as you gives you a guide on the dial of the gas level in your bottle helping to prevent being caught out with no gas.
Technical information:-
This is a single stage push fit butane gas regulator preset to 28mbar to EN12864
Please note on some older style gas bottles there may not be enough room to fit this type of regulator with the dial within the handle /shroud area.
The regulator is only suitable for gas bottles with the following type of fitting:-
How to connect 7kg, 12kg and 15kg Butane gas bottles
These cylinders have a 21mm valve and should only be used with 21mm regulators.
Remove the orange dust cap by pulling the lanyard out, and then upwards, avoid using tools for this, and just leave the cap hanging.
Check that the black sealing washer is fitted inside the cylinder valve
Make sure the regulator switch is in the disconnect position (3 o’clock position)
Fit the 21mm regulator as the manufacturer’s instructions suggest.
When you need to use gas, turn the switch anticlockwise to the ‘on’ position
5704122001048
